Air Force-Navy Aeronautical Standard , 13 Nov 41, Revised 20 Aug 54, Revised 1 Jun 54, AN876, Rev 2, dated 1 June 1954 is hereby canceled without replacement, Privately Updated by Graham Tool Company, Inc. 1 Jan 2012.

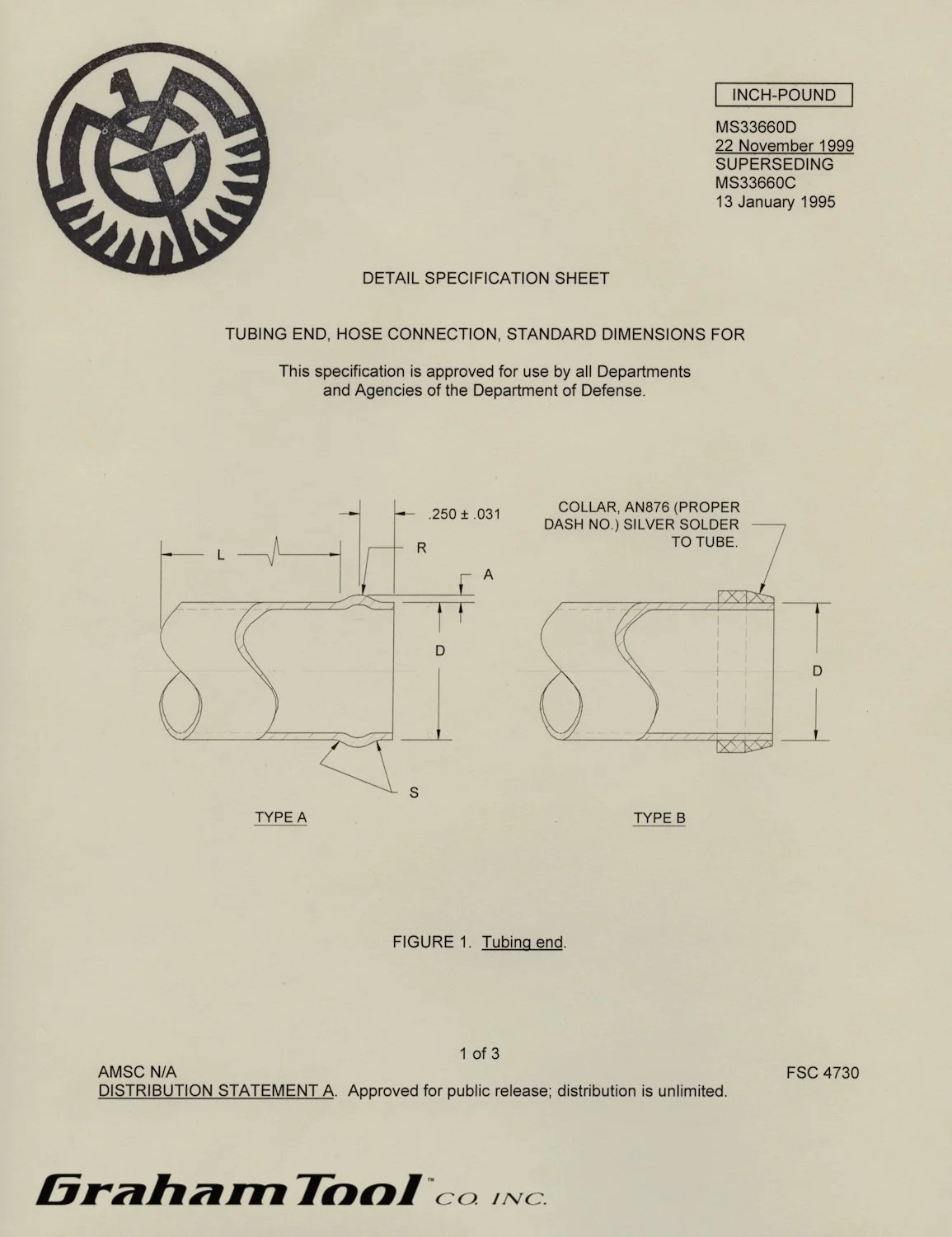

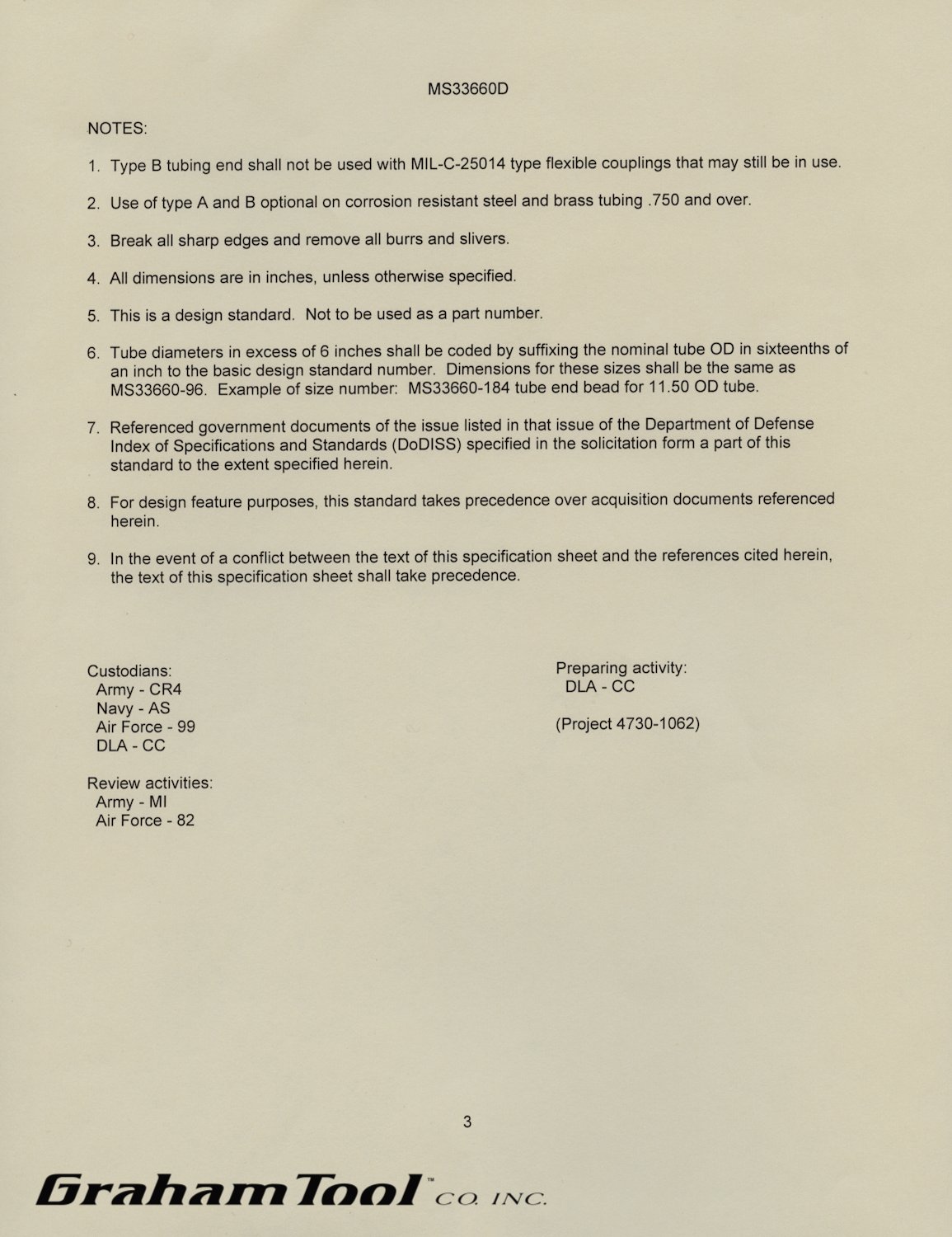

AN876 Collar appears in MS33660D.

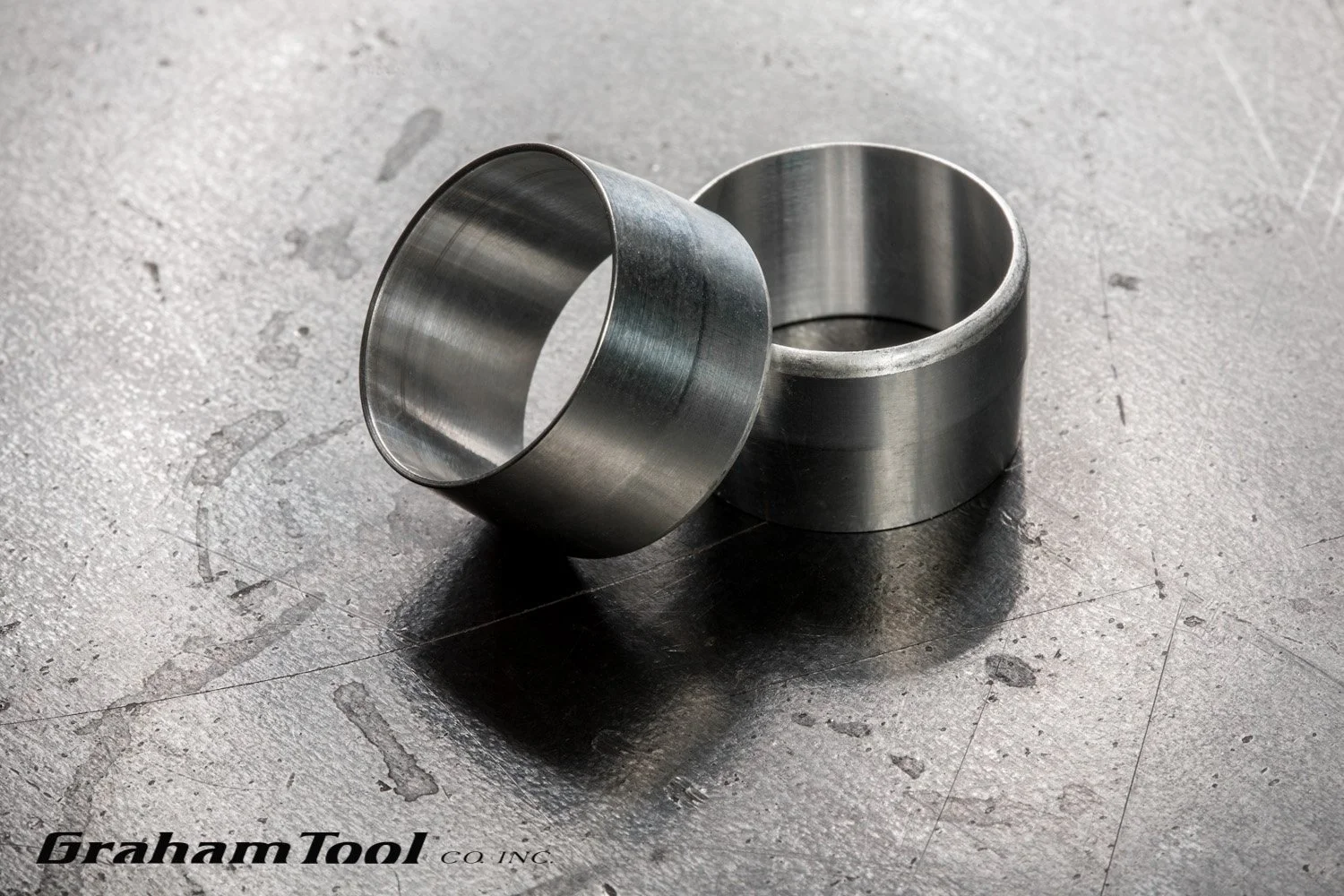

Available in stainless steel, brass, and aluminum. Originally designed for -12 (3/4” OD Tube) through -48 (3” OD Tube). Currently available for -4 (1/4” OD Tube) through -96 (6” OD Tube). Also, available for 3/16” OD Bundyweld tubing and double hose clamps per the dimensions of SAE Aerospace AS5131.

Useful for hose and hose clamp applications. Can be installed by micro TIG welding, brazing, silver solder, and epoxy bonding.

Also, we have the capability to make the following:

AN841 Rev 6, Adapter - Hose to Flared Tube, 7 June 2011, Superseding AN841 Rev 5, 19 April 1982

Military Standard MS33658, Fitting End, Hose Connection, Standard Dimensions For, Approved 20 Jun 58, Revised 30 June 59.

Of additional interest is the following.

AND 10065, Army - Navy Aeronautical Design Standard - Standard design of flexible fluid connection assembly

MS33529(ASG), Military Standard, Tolerances - Seamless Steel Tubing, Aircraft Airframe, Round

WW-C-440b Clamps, Hose, (Low Pressure), Federal Specification, October 16, 1965, Superseding Fed. Spec. WW-C-440a, August 25, 1958

Call Brian for more details. The minimum production run is $2,500.00
